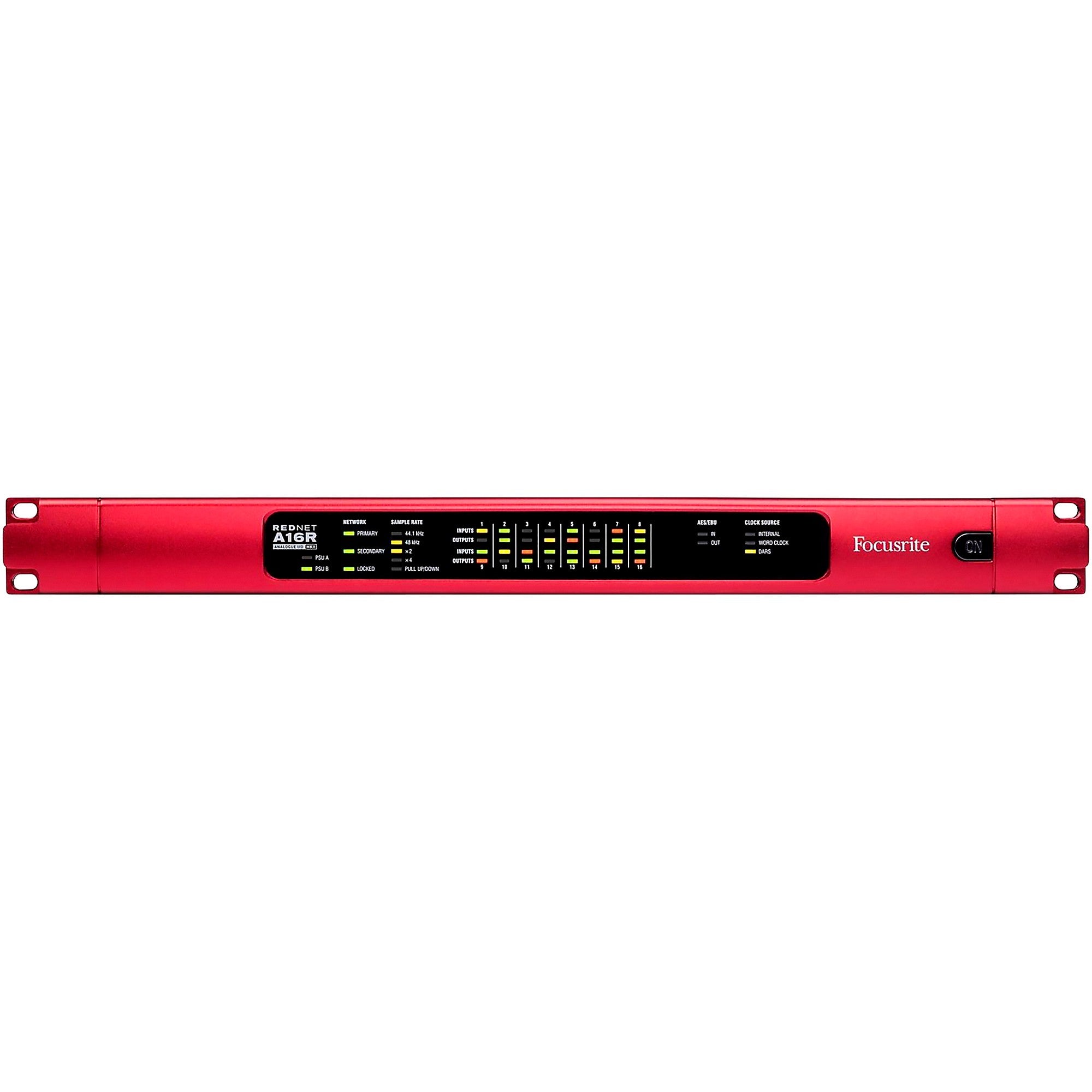

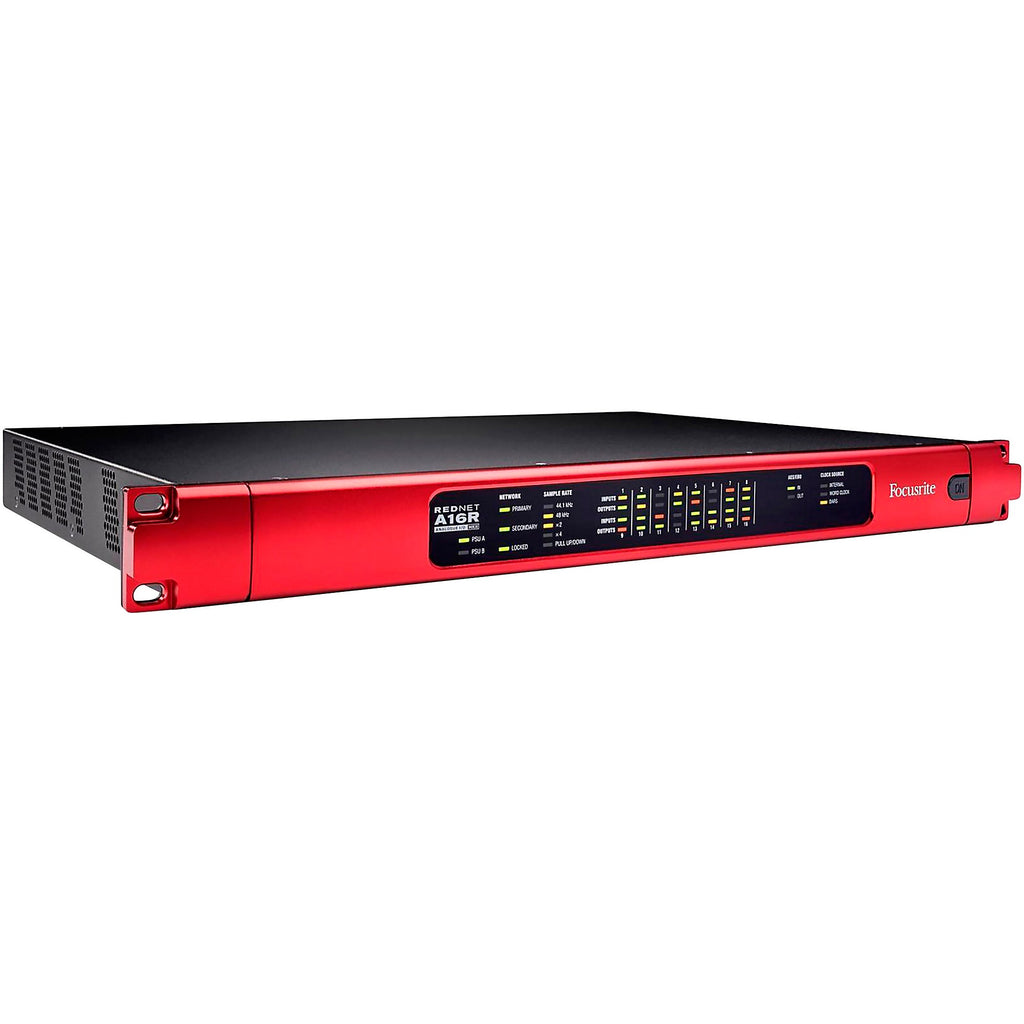

Focusrite's RedNet A16R MkII audio network interface connects to your facility's network with a single Ethernet cable. And it sounds superb, thanks to top-shelf AD/DA conversion, premium analog circuitry, and jitter-eliminating JetPLL technology — you'll enjoy amazingly low latency too. Capture world-class audio with 119dB of dynamic range at 24-bit/192kHz. Enjoy the robust connectivity supplied by 16 channels of analog I/O and the expandable power of Dante audio networking. The Focusrite RedNet A16R MkII audio network interface also boasts network and power supply redundancy for mission-critical applications.

Focusrite RedNet A16R MKII at a Glance:

• Reliable, robust digital audio networking for Dante digital audio network environments
• 16 channels of analog I/O provides robust connectivity
• 24-bit operation at up to 192kHz sampling rate
• Superb audio quality with a dynamic range of 119dB
• Proven Dante networking technology uses standard networking components
• Brooklyn II Dante chipset for up to 32 Tx and 32 Rx flows across a Dante network
• Units are hot-swappable, detected and configured automatically upon plugging into power
• Redundant power supply and network connectivity
• Free Brainworx bx_console re-creation of Focusrite's ISA 110 and ISA 130 modules

RedNet delivers superb audio quality over Ethernet

RedNet is ideal in any environment where pristine audio and extremely low latency over a network are required. Scalable and versatile, RedNet harnesses the simplicity of Ethernet to build audio network systems that range from a small facility with one or two recording spaces to moderate-sized facilities to large studios with multiple recording spaces and control rooms. RedNet is also great for live performance venues such as concert halls, houses of worship, or large spaces like arenas and stadiums.

Dante provides an easy way to deliver digital audio

RedNet uses the Dante protocol to connect to your studio network. Dante (Digital Audio Network Through Ethernet) transmits uncompressed, multichannel digital audio over a standard Ethernet with incredibly low latency. Using Dante is incredibly convenient. Instead of dealing with a bunch of cumbersome analog cables, you use a single Cat 5e or Cat 6 cable. Rather than running analog cable throughout a studio or concert venue, you can utilize the structure's existing Ethernet network. And your interface can be anywhere in the facility. As long as it's connected to the network, you're good to go. Patching and routing are handled by a simple software panel, which can be hosted on any computer or device connected to the network. Have questions about Dante? Music Experience sales team is Level 2 Dante Certified and ready to help configure your Dante system.

RedNet Control software is flexible and easy to use

Ideal for larger studios or facilities, RedNet’s Control software makes simple work of routing, controlling, and configuring interfaces. Numerous functions of a RedNet system can be set including preamp gain, reference level, clock source, preferred master clock, sample rate, and much more. Run it on your main control room computer or your laptop to move around the facility. Anywhere there is an Ethernet connection, you can be in control of the network.

What Focusrite Says...

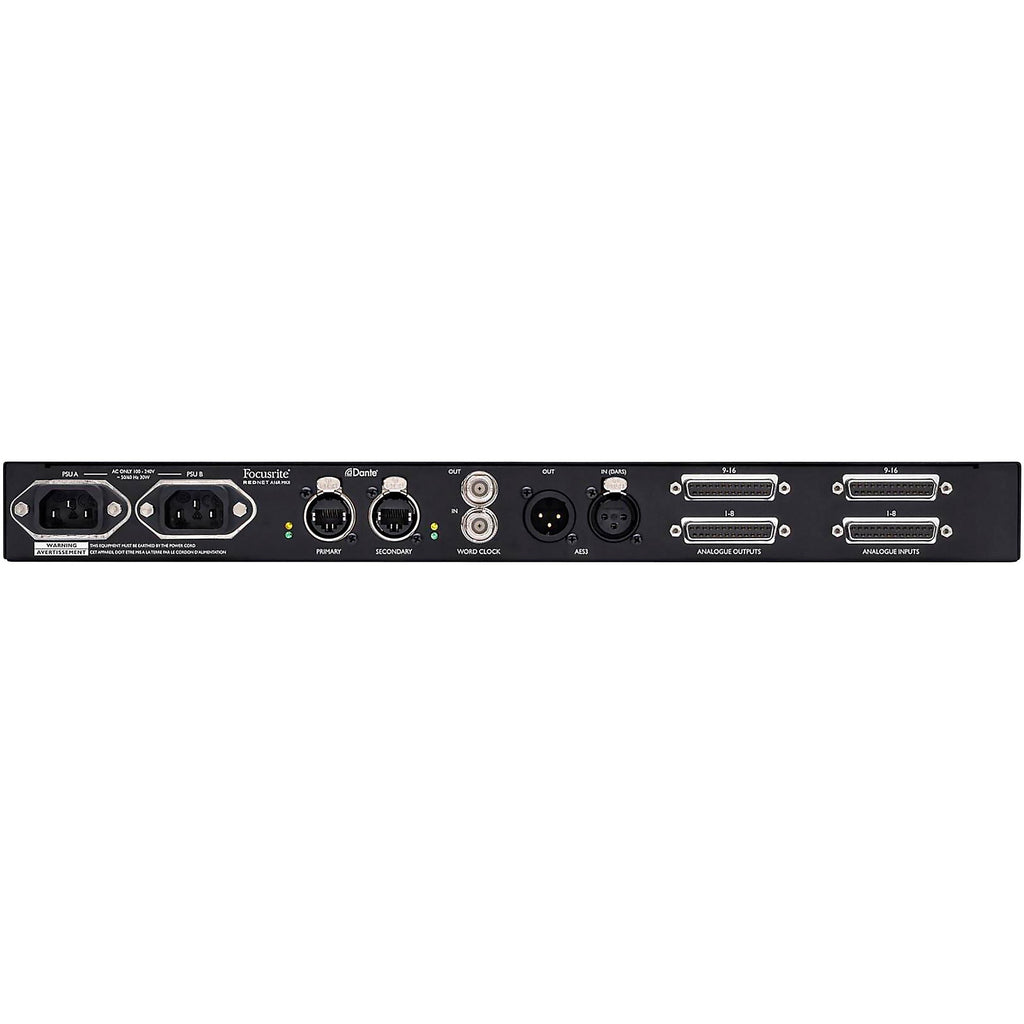

RedNet A16R MK2 is a 16-channel analogue Interface for Dante networks, with two channels of AES3 I/O. Individual input and output channel level controls allow for precise adjustment of all I/O levels using RedNet Control. With two power supplies and primary and secondary etherCON network connectors, RedNet A16R MK2 is perfect for critical-path applications in recording, post-production, live sound and broadcast. Built-in redundancy features allow for silent fail-over in the event of power or network outage, providing reassurance for system technicians. Analogue inputs and outputs are connected through four rear-panel AES59-configured DB25 connectors, while an additional pair of AES3 I/O is provided through male and female XLR for added flexibility. The XLR input can accept DARS signals in addition to AES3. Word Clock I/O on BNC connectors allows external devices to clock to RedNet A16R MK2, or alternatively allows RedNet A16R MK2 to act as a network clock grand master, synchronised to external input. RedNet A16R MK2 is well suited to permanent installation and repeated strike and setup: all connectors lock and remain terminated even under stress, providing worry-free installation and peace of mind once situated in a rack. In addition, all Focusrite products come with a three-year warranty and award-winning customer support.

16x16 AES3 I/O with independent level control

The RedNet A16R MkII is a 16-channel bi-directional AES3 interface for Dante® networks. The 1U rackmount device features individual input and output channel level controls, allowing for precise calibration and control of all input and output levels using RedNet Control. RedNet D16R MkII features power supply and Ethernet redundancy with auto switchover in case of failure. Various connection options make RedNet D16R MkII a flexible addition to any Audio-over-IP system. A pair of DB25 multipin connectors each connect eight channels of AES3 I/O into and out of the interface, while XLR and RCA ports enable two-channel AES3 and S/PDIF connections, respectively, to be made. Sample rate conversion on every input enables external equipment to operate at different sample rates, and DARS signals are accepted on the XLR connector. Word Clock I/O on BNC connectors allows synchronisation to house clock, or syncing external equipment to the Dante network.

The Focusrite Studio Console reborn in your DAW

The Focusrite Studio Console defined countless hits of the 80s and 90s, thanks in large part to its ISA 110 Equaliser and ISA 130 Dynamics Modules. Brainworx's bx_console Focusrite plug-in brings you stunningly accurate emulations of both in a single plug-in, perfectly capturing the famously warm, open sound of two of the most revered pieces of studio hardware ever made.

Enjoy 3 years of warranty
