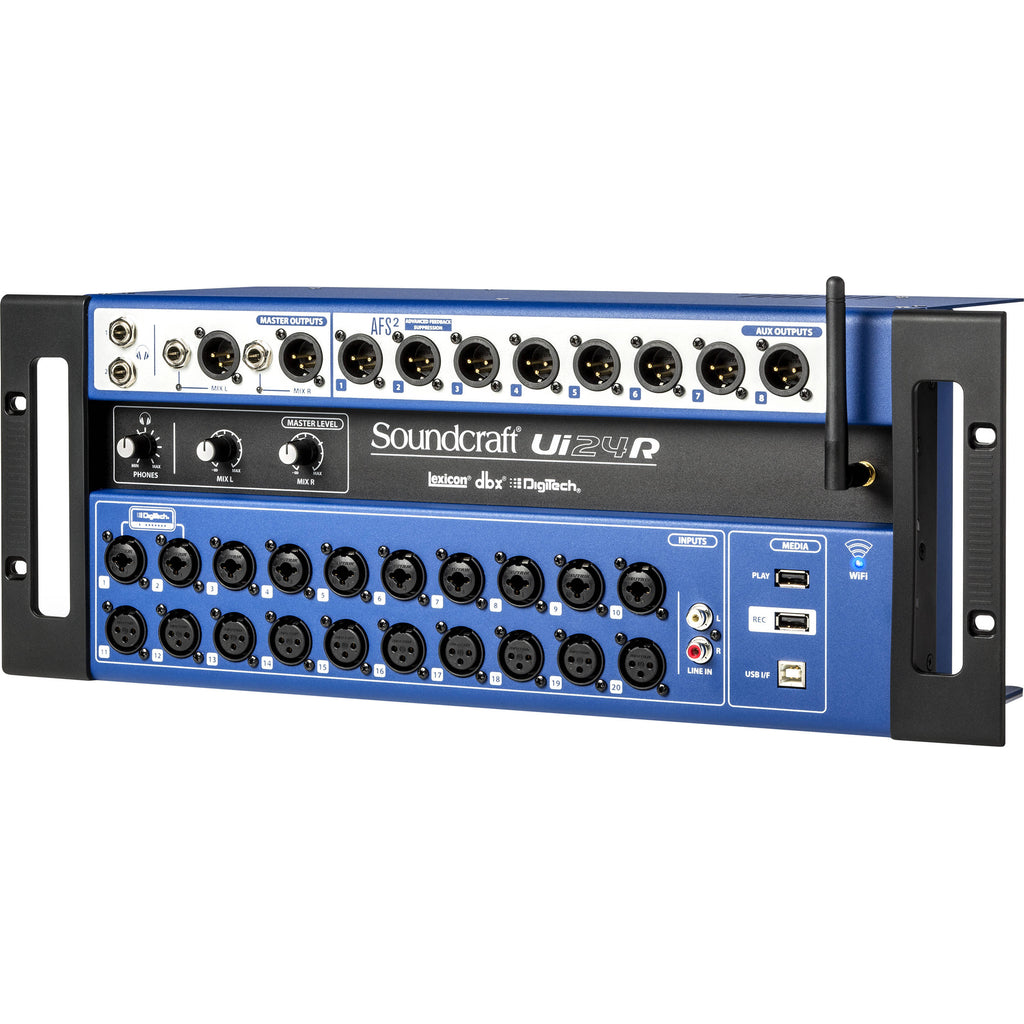

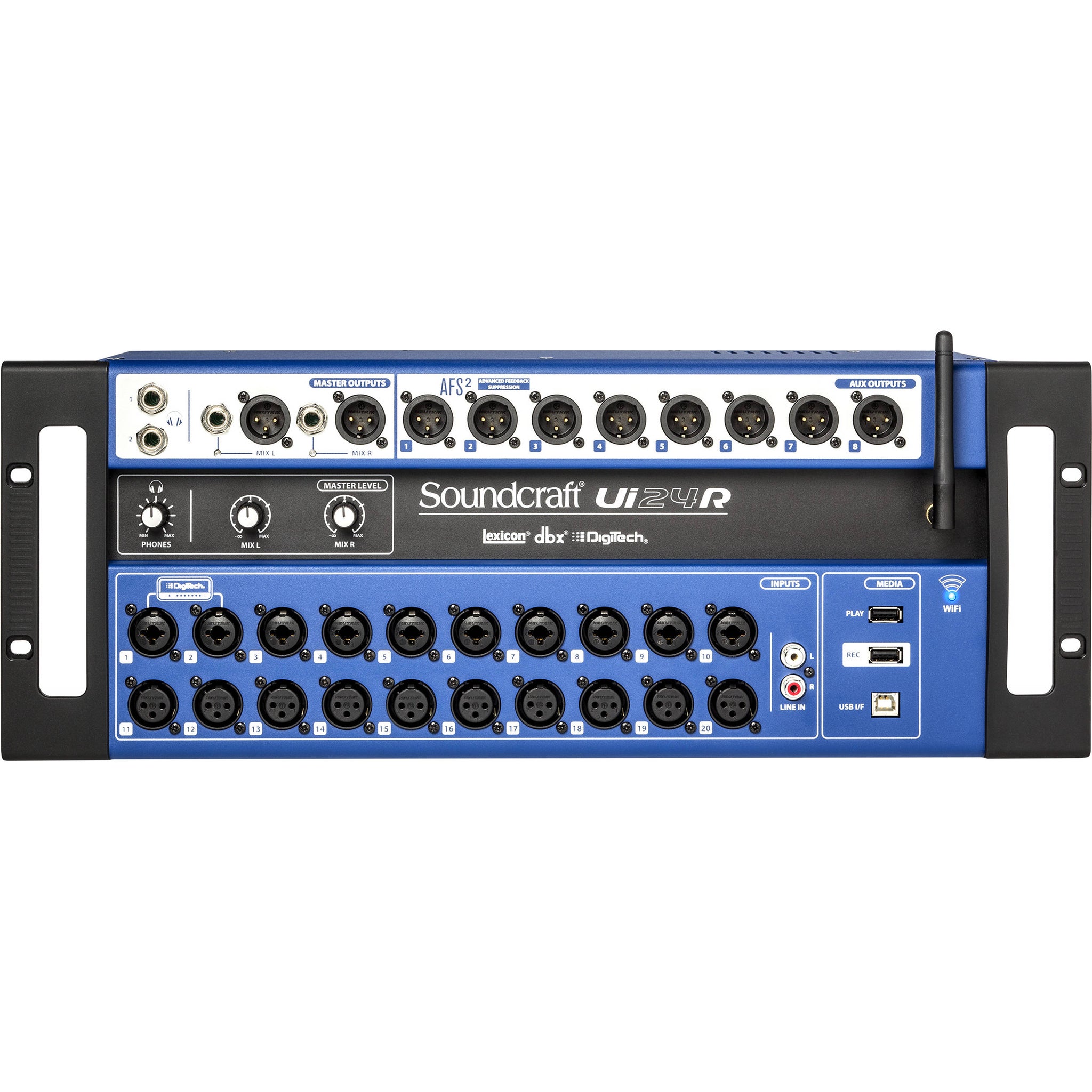

Achieve flexible I/O, great sound quality, and convenient wireless control with the Soundcraft Ui24R. This 24-channel rackmount digital mixer packs 20 Studer-designed microphone preamps and processing from Lexicon, dbx, and DigiTech. Take command of the Ui24R with up to 10 devices over Ethernet or Wi-Fi. Mix from anywhere in the venue using your smart device. Place the Ui24R onstage and use it as a stagebox. Capture a full multitrack recording onto a USB drive. Or connect the Ui24R to your DAW and use it as a USB audio interface. The Soundcraft Ui24R rackmount digital mixer is a powerful asset, both onstage and in the studio.

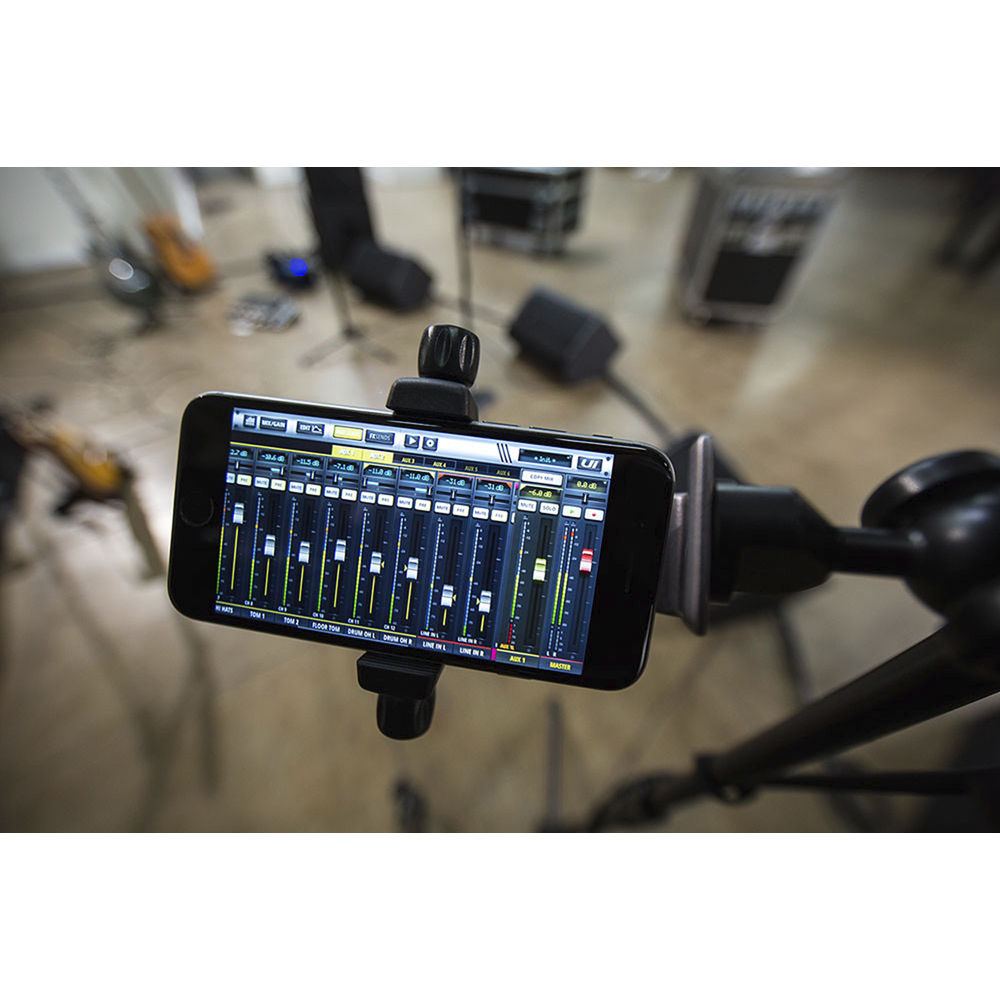

Soundcraft built Wi-Fi into the portable and compact Ui24R digital mixer. You don't need a router or other fancy device — this mixer has it all. Any device that can connect via Wi-Fi and has a browser can connect to the Ui24R. That's right, no apps, no worrying about OS issues, just connect and take control. Use your phone, tablet, laptop, or desktop computer. Soundcraft's Ui24R can connect up to 10 devices at the same time, so the band can take control of their own mixes and volumes. The Ui24R's software gives you full input and output processing on each channel. You also get control of the effects parameters, buses, Shows/Snapshots, and much more. A handy Ethernet port lets you take wired control of this digital mixer via your computer or laptop. The Soundcraft Ui24R makes connecting to and taking control of your mix easier than ever!
Soundcraft Ui24R digital mixers incorporate Lexicon effects, dbx signal processing, and DigiTech amp/stompbox modeling. Fully adjustable parameters mean you can tweak each effect to your heart's content. You get three dedicated effects buses that feature award-winning Lexicon effects including reverbs, delay, and chorus. Each channel has dbx compression, de-essing, and noise gating built-in and ready to use, plus a powerful real-time frequency analyzer (RTA). The two hi-Z inputs feature DigiTech's amp and stompbox modeling with tons of amp, cabinet, and effects options. Soundcraft's Ui24R rackmount digital mixer has all of the signal processing and effects you need to give your performance a professional sound.
The Ui24R's dbx AFS2 feedback suppressor boasts dbx's updated Advanced Feedback Suppression algorithm. The AFS2 listens to the incoming signal and can anticipate problem frequencies before feedback even begins. You won't hear it working, and you won't notice any sonic difference with it in your signal chain. Live sound engineers at Music Experience know that even if you're an expert at tuning your sound system, cramped stage conditions or careless performers always have the potential of introducing feedback. The built-in dbx AFS2 feedback suppressor system in the Soundcraft Ui24R is like getting sonic insurance for your live sound.
Besides being a top-shelf digital mixer, the Soundcraft Ui24R is also a superb recording tool. Its built-in audio interface makes integrating it with your recording rig a piece of cake. And it allows you to capture all 22 inputs and your stereo mix (24 channels total) onto a USB drive and your DAW simultaneously.
| Type | Digital |
|---|---|
| Channels | 24 |
| Inputs - Mic Preamps |
10 x XLR-1/4" combo, 10 x XLR |
| Phantom Power | Yes |
| Inputs - Line |
1 x stereo RCA |
| Outputs - Main |
2 x XLR, 2 x 1/4" |
| Busses/Groups | 8 x XLR (aux outs) |
| Data I/O | 2 x Ethernet, 1 x HDMI |
| USB | 4 x Type A, 1 x Type B |
| Computer Connectivity | USB (24 x 24), Ethernet, Wi-Fi |
| Headphones | 2 x 1/4" |
| EQ Bands | 4-band parametric EQ, 31-band graphic EQ |
| Effects | Lexicon Reverb, Lexicon Delay, DigitTech guitar amp modeling |
| Signal Processing | dbx compression, dbx AFS2 auto feedback suppression, noise gate, de-esser |
| Features | Built-in dual-band Wi-Fi, real time frequency analyzer, 24 track recording to USB |
| Software | Remote control with iOS, Android, Windows, OS X and Linux |
|
Rackmountable |
Yes (4U) |
| Height | 7" |
| Depth |
6.8" |
| Width |
19" |
| Weight |
22 lbs. |
| Manufacturer Part Number |
5076585 |
